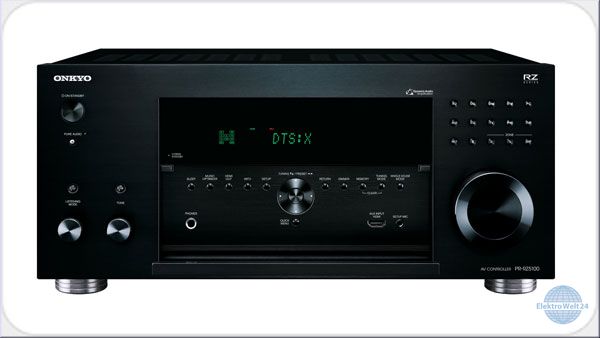

11.2-Channel Network A/V Controller

Make Multidimensional Sound Your Cinema’s Crowning Glory

Update your lovingly assembled home cinema and join the object-based sound revolution with a flexible and sophisticated controller capable of delivering a full-scale multidimensional surround-sound experience without caveat or compromise. DTS:X and Dolby Atmos formats are decoded and sent to your power-amp and floorstanding/in-ceiling speaker layout with utmost fidelity through RCA or XLR pre-outs, unlocking a truly immersive cinema experience. Premium DACs and VLSC assures stunning purity for Hi-Res Audio, such as 11.2 MHz DSD, while separate digital/analog circuitry prevents interference on analog sources. Together with comprehensive wired and wireless multi-room A/V capabilities, app-based streaming via Google Cast, Wi-Fi, and AirPlay, and the latest HDMI connections, this beautifully crafted centerpiece boasts every convenience to smooth the transition to next-generation entertainment.

---

HIGHLIGHTS

• THX Ultra2 Plus Certification
• Native DTS:X and Dolby Atmos to 7.2.4 Channels
• DTS Neural:X Upmixing for Legacy Multichannel Formats
• Google Cast, AirPlay, Wi-Fi, and Bluetooth App Streaming
• AccuEQ Room Calibration with AccuReflex Technology
• FireConnect Multi-Room Wireless Technology
• HDMI 8 In (1 Front), Main Out, Zone 2 Out  (HDCP 2.2/HDR*1)

ADVANCED FEATURES

• THX Ultra2 Plus Cinema-Reference Audio Performance
• 7.2.4-channel DTS:X and Dolby Atmos Object-based Audio Decoding
• DTS Neural:X Upmixes Standard 5.1 and 7.1 formats to 3D Sound
• HDMI Supports 4K/60 Hz, High Dynamic Range, 4:4:4 Color Space, and HDCP 2.2-protected Video*1
• Customized and Shielded Low-Hum Transformer and Separate Transformer for Standby
• VLSC (Vector Linear Shaping Circuitry) Noise-free Signal Processing for All Channels
• Google Cast*2, AirPlay, Wi-Fi, Bluetooth*3, TuneIn Radio, Pandora, Spotify, TIDAL*2, and Deezer*2 for App-based Audio Streaming*4
• Network/USB Audio (DSD 11.2 MHz (Stereo), 192/24 PCM, Dolby TrueHD, FLAC, WAV, ALAC, AAC, MP3, WMA)
• Whole House Mode Function
• AccuEQ Calibration with AccuReflex for Seamless Object-based, Multichannel, and Stereo Sound (Setup Mic Included)
• FireConnect*2 Wireless Multi-room Digital/Analog Audio Distribution to Compatible Speakers (Sold Separately)
• 11.2 Multichannel and XLR Pre-Outs for Amplifier Connection
• PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
• Remote App for iPhone/iPod touch*5 and Android Devices*6

*1 6G Video/HDCP 2.2 supported on HDMI inputs 1-5, Main Out, and Zone 2 Out.
*2 Services enabled via firmware update. Details TBA.
*3 Bluetooth specification Version 4.1 (compatible profile: A2DP v1.2, AVRCP v1.3) also supporting Advanced Music Optimizer.
*4 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice.
*5 Compatible with iPod touch (5th generation or later) and iPhone 4GS or later.
*6 Requires Android 4.0.3 or later.

PROCESSING FEATURES

• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS:X, DTS-HD Master Audio, DTS 96/24, DTS-ES, DTS Express, DTS Neural:X, THX Cinema/Music/Game, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio Decoding
• Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R), 2 x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
• Discrete 192 kHz/24-bit AK4388 Stereo DACs (x2) for Zone 2 and Zone 3
• Multiple 32-bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode

CONNECTION FEATURES

• 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
• Component Video Switching (2 Inputs and 1 Output) and 2 Composite Video Inputs
• 5 Digital Audio Inputs (3 Optical and 2 Coaxial) and 7 Analog Audio Inputs
• Phono Input (MM) for Turntable Connection
• Mass Storage Class USB Memory Playback Capability (Rear Input)
• 11.2 Multichannel and XLR Pre-Outs
• Zone 2 and Zone 3 Pre-/Line Outs
• Dual Subwoofer Pre-Outs
• 12 V Trigger Out (Assignable) with IR Input, Supports IP and RS232
• 6.3 mm Headphone Input

OTHER FEATURES

• Tone Controls (Bass/Treble) ±10 dB for All Channels
• Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• New Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Setup Function
• Hybrid Standby Function with HDMI Passthrough
• 40 FM/AM and 40 Internet Radio Station Presets
• RIHD (Remote Interactive Over HDMI) for System Control
• Aluminum Front Panel and Volume Control Knob

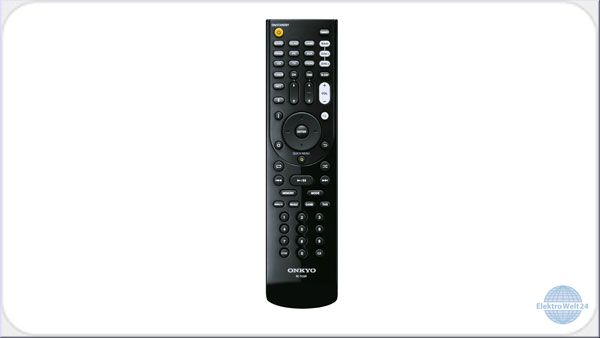

• Simple Remote Control

Power Supply: AC 220-230 V, 50/60 Hz
Power Consumption: 65 W
Standby Power Consumption: 0.15 W
Dimensions (W x H x D): 435 x 201 x 447.5 mm
