An ultra-compact stereo power amplifier, powered by Hypex Ncore technology, designed to enable Bi-amping, or use in BTL (Bridge Tied Load/Bridged) mode

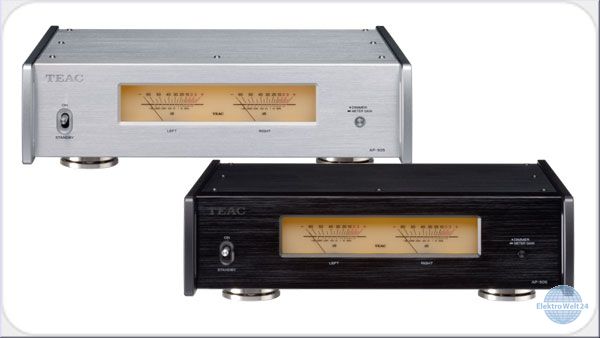

The AP-505 is a versatile stereo power amplifier based around a high-performance, TEAC-tuned, Hypex Ncore power amplifier module, housed within a compact and elegant case.
Capable of operating in bi-amp and BTL (Bridge Tied Load/Bridged) modes, in addition to conventional stereo operation, the AP-505 produces a maximum 115W + 115W of output power in stereo/bi-amp modes and 220W in BTL/bridged mode. At its heart is an Ncore power amplifier module, made by Hypex of the Netherlands and specially tuned by TEAC’s R&D team, for superlative sound quality
As for the exterior, lightweight aluminum-alloy panels cover a robust steel chassis. A pair of large level meters add visual interest when the amplifier is in action, while TEAC's patent-pending ‘Pin- point’ feet, located at three strategic positions on the underside, add incision to the sound, helping to create a more detailed and stable stereo image.
Amplifier section
Maximum output power:
STEREO, BI-AMP mode 115 W + 115 W (4 Ohm, 1kHz, JEITA) 90 W + 90 W (8 Ohm, 1kHz, JEITA)
BTL mode 220W (8 Ohm, 1kHz, JEITA)
Rated output power:
STEREO, BI-AMP mode 115 W + 115 W (4 Ohm, 1kHz, THD 0.8%) 70 W + 70 W (8 Ohm, 1kHz, THD 0.8%)
BTL mode 220W (8 Ohm, 1kHz, THD 0.8%)
Total harmonic distortion: 0.0015 % (8 Ohm, 1kHz, 12.5W, JEITA)
Signal-to-Noise ratio: 113 dB (8 Ohm, 1kHz, IHF-A)
Frequency response: 10 Hz to 50,000 Hz (+0dB, -5dB, 8 Ohm, 1kHz, 1W, JEITA)
Analog input section
LINE IN (Balanced) XLR (2: HOT) x 1 pair
Input sensitivity 1.3V (output 8 Ohm, THD 1%)
Input impedance: 10k Ohm or higher
LINE IN (Unbalance) RCA (gold-plated) x 1 pair
Input sensitivity: 0.66V (output 8 Ohm, THD 1%)
Input impedance: 10k Ohm or higher
Allgemein:
Betriebsspannung: AC 230V, 50Hz
Energieverbrauch: 106W
Standby Energieverbrauch: 0.1W (at Auto-power saving mode)
Gesamtabmessungen (B x H x T): 290 x 84.5 x 271 mm
